Removable handrail for disabled 600 mm SWB
- Kod produktu: 32UUWC6SWB
- Manufacturer: Faneco
- Availability: In a warehouse
-
Add feedback:
5 z 1 opinii
- Obserwuj produkt:
- €45.46 €42.09 net
-
Order now, we will send today!
Today's shipment is available for only:Place your order now, we will send your wares in:
Monday (04 December) at 2:00 PM Wednesday (06 December) at 2:00 PM 0 psc. in stock, shipping: Monday (04 December) at 2:00 PMdziśh min sec

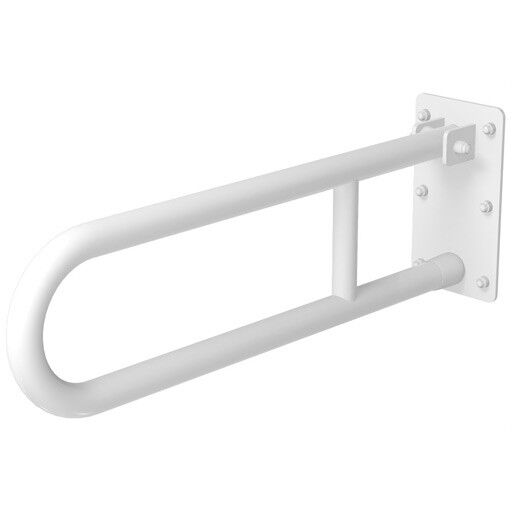

Swivel bracket for disabled 600 mm white
- Material: Carbon steel
- Finish: White epoxy paint
- Epoxy coating thickness: 80 μ
- Shape rails: arch
- Arm length: 600 mm
- Overall dimensions: 112 x 150 x 600 mm
- Pipe diameter: Ø 32
- Steel thickness: 1.5 mm (pipe), 3-4 mm (bracket)
- Connection type of steel: TIG weldingEvading
- Security: progressive braking system
- Maximum load: 120 kg
- Mounting: wall 6 screws
- Diameter holes for screws: Ø 6.2
- Fixing screws 6 nylon pegs and six hex head screws (6 x 60 mm)
- Entry in the register of medical devices
Place of assembly: bath / toilet.
Shortcuts:
Parameters
Swivel bracket for disabled 600 mm white
- Material: Carbon steel
- Finish: White epoxy paint
- Epoxy coating thickness: 80 μ
- Shape rails: arch
- Arm length: 600 mm
- Overall dimensions: 112 x 150 x 600 mm
- Pipe diameter: Ø 32
- Steel thickness: 1.5 mm (pipe), 3-4 mm (bracket)
- Connection type of steel: TIG weldingEvading
- Security: progressive braking system
- Maximum load: 120 kg
- Mounting: wall 6 screws
- Diameter holes for screws: Ø 6.2
- Fixing screws 6 nylon pegs and six hex head screws (6 x 60 mm)
- Entry in the register of medical devices
Place of assembly: bath / toilet.
