Chassis for urinal Faneco

  • Kod produktu: KKP711
  • Manufacturer: Faneco
  • Availability: Product available.
  • Add feedback:
    0 z 0 opinii
  • Obserwuj produkt:
  • Faneco
  • €129.18 €158.89 gross
  • Quantity:

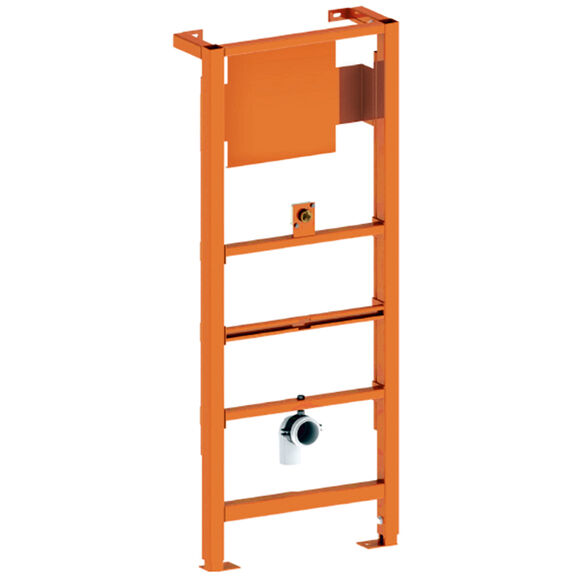

Concealed frame for urinals

  • Material: steel
  • Finish: powder-coated
  • Steel thickness: 1.5 mm
  • Frame dimensions: Height 1180 - 1350 mm, width 410 mm, depth 155 - 235 mm
  • Installation method: concealed (2 mounting points to the wall, 2 mounting points to the floor), M8 screws
  • Profile cross-section: 35 mm x 35 mm
  • Technical approval: COBRI INSTAL no. AT/2005-02-1548
  • Weight: 12.6 kg
  • Warranty: 2 years in a door-to-door system

Parameters

Concealed frame for urinals

  • Material: steel
  • Finish: powder-coated
  • Steel thickness: 1.5 mm
  • Frame dimensions: Height 1180 - 1350 mm, width 410 mm, depth 155 - 235 mm
  • Installation method: concealed (2 mounting points to the wall, 2 mounting points to the floor), M8 screws
  • Profile cross-section: 35 mm x 35 mm
  • Technical approval: COBRI INSTAL no. AT/2005-02-1548
  • Weight: 12.6 kg
  • Warranty: 2 years in a door-to-door system

Read Download
Product card (printable)
